Are you ready to bring the heat to those technical trails With the Trance 29 1 mountain bike, you'll have all the confidence and control you need to take on any terrain! This feisty 29er is equipped with updated suspension and adjustable geometry, making it the ultimate trail machine. No matter what challenges come your way, the Trance 29 1 will adapt and conquer them all. So strap on your helmet and get ready to feel the thrill of the ride as you dominate those technical trails like a pro. The Trance 29 1 is waiting to be your trusty steed on your next epic adventure! Adjustable frame geometryNew flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
29er confidence and controlLarger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

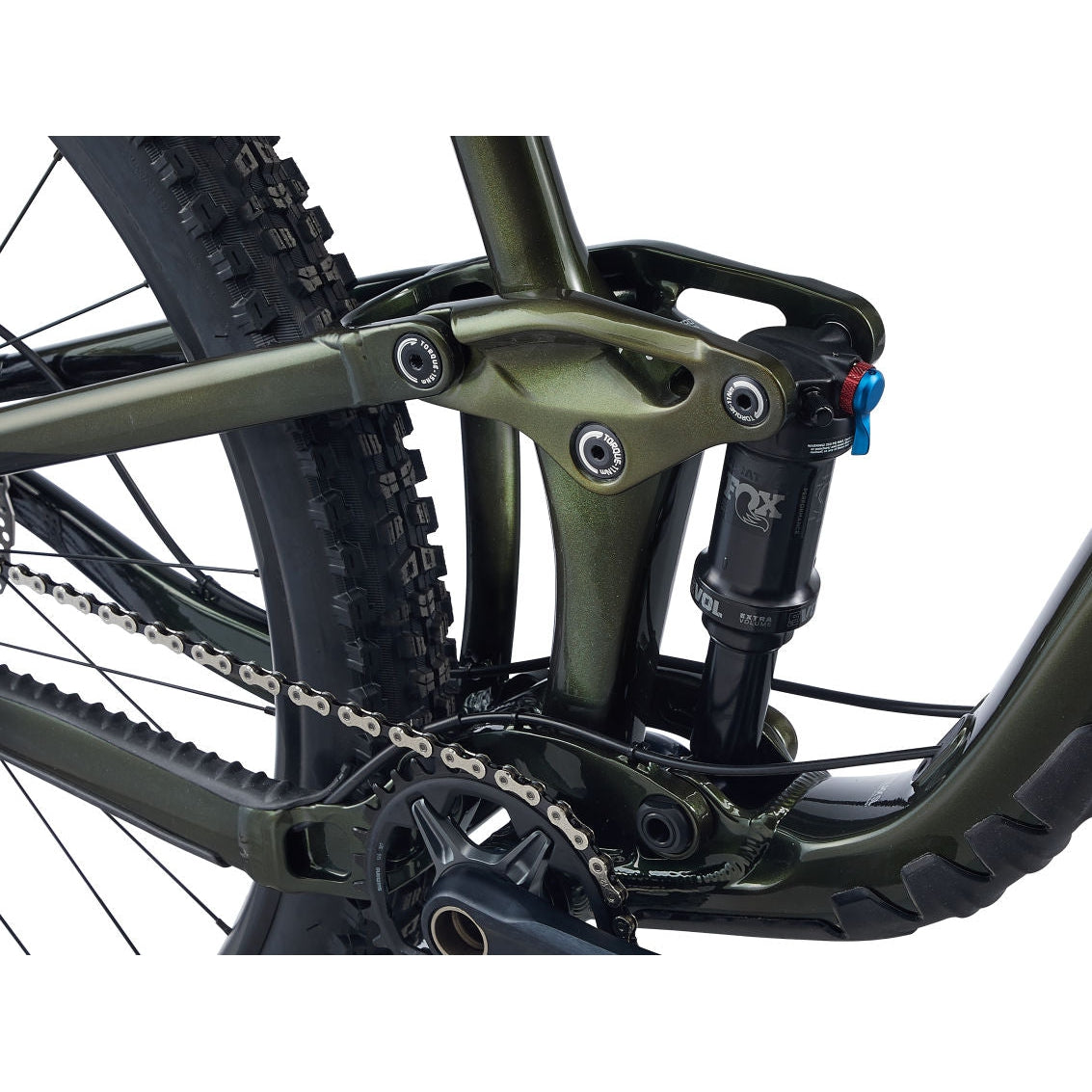

Progressive trail designLightweight ALUXX SL aluminum frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.
| | S | M | L | XL |
|---|
| | LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | | | SEAT TUBE LENGTH (inch) | 16.5 | 16.9 | 18.3 | 19.5 | | | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° | | | TOP TUBE LENGTH (inch) | 22.1 | 22 | 23.6 | 23.5 | 24.6 | 24.6 | 26.1 | 26 | | | HEAD TUBE LENGTH (inch) | 3.9 | 4.3 | 4.7 | 5.1 | | | HEAD TUBE ANGLE | 65.4° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | | | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 | | | TRAIL (inch) | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 | | | WHEELBASE (inch) | 45.9 | 45.9 | 47 | 47 | 48.2 | 48.1 | 49.7 | 49.7 | | | CHAIN STAY LENGTH (inch) | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 | | | BOTTOM BRACKET DROP (inch) | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 | | | STACK (inch) | 24 | 23.8 | 24.4 | 24.1 | 24.7 | 24.5 | 25.1 | 24.8 | | | REACH (inch) | 16.6 | 17 | 17.6 | 18 | 18.6 | 18.9 | 20 | 20.3 | | | STAND OVER HEIGHT (inch) | 28.7 | 29.1 | 28.5 | 28.9 | 29.5 | 29.9 | 30.4 | 30.7 | | | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 | | | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 | | | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 | | | WHEEL SIZE | 29" | 29" | 29" | 29" |
- Sizes: S, M, L, XL
- Colors: Phantom Green / Black / Chrome, Hematite / Black / Chrome
- Frame: ALUXX SL-Grade Aluminum front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle
- Fork: Fox 34 Performance, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
- Shock: Fox Float DPS Performance, 185/50, custom tuned for Giant
- Handlebar: Giant Contact TR35, 780x35mm
- Grips: Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
- Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
- Seatpost: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm
- Saddle: Giant Romero
- Pedals: Sold Separately
- Shifters: Shimano SLX SL-M7100, 1x12
- Front Derailleur: N/A
- Rear Derailleur: Shimano SLX RD-M7100
- Brakes: Tektro HD M745
- Brake Levers: Tektro HD M745
- Cassette: Shimano SLX, 10x51
- Chain: KMC X-12
- Crankset: Shimano SLX, 30t S:165mm, M:170mm, L:170mm, XL:170mm
- Bottom Bracket: Shimano, press fit
- Rims: Giant AM 29 tubeless ready sleeve-joint rim, 30mm inner width
- Hubs: alloy, sealed
- Spokes: Sapim
- Tires: [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
- Extras: tubeless prepared, 2.6" max tire size, 34t max chainring size
- Weight
- The most accurate way to determine any bike's weight is to have your localBicycle Warehouseweigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
